When it comes to deep foundation construction in Hawaii’s rugged, regulation-heavy terrain, contractors need tools that offer power, precision and reliability. That’s where LEFFER drilling equipment makes a difference.
LEFFER is known for pioneering the fully cased drilling methodology for both permanent and temporarily cased piles. Now with the launch of the new VRM 3050KL casing oscillator, LEFFER provides the largest oscillator capable of working with a drill rig to instal casing up to 3 meters / 10 foot in diameter.
This blog provides a comprehensive look at how LEFFER drilling equipment continues to advance capabilities for fully cased drilling.
We’ll explore the unique challenges of working in Hawaii, how casing oscillators from LEFFER drilling equipment function, and why the VRM 3050KL is a game-changing piece of equipment for contractors and engineers alike.
Keep reading to learn more.
How does a casing oscillator work?
A casing oscillator supports deep foundation work, particularly when working through difficult or unstable ground, to allow for the installation and removal of temporary casing during the drilling process.
Instead of relying on vertical impact or vibration, the oscillator applies controlled rotational torque and crowd force to assist in the installation and removal of casing. This oscillating action and pull out force makes it highly effective in installing and removing casing in varying conditions as a primary way of keep the pile open during drilling and reducing the potential to effect nearby foundation and structures by isolating each pile..
The oscillator typically gets mounted on a crane or drilling rig, where it securely clamps onto the steel casing and initiates a powerful back-and-forth rotational movement.
Combined with steady downward pressure, this motion enables the casing to gradually work its way into and out of the earth. The continuous oscillation helps reduce resistance/friction to enable movement of the casing down during installation and up/out during removal.
Casing oscillators can assist in safer excavation and more reliable foundation performance by enabling a fully cased borehole.
Why do casing oscillators matter in Hawaii?
Hawaii’s challenging ground conditions
Hawaii’s geology is incredibly diverse, creating challenging ground conditions and sensitive environments making casing oscillators important to the state’s foundation construction. On one project, contractors might encounter loose, sandy soil down to dense volcanic rock or fractured basalt in the same drill shaft.
The variability makes requirements for larger and deeper foundations which require much more powerful equipment to complete.
That’s where LEFFER foundation drilling equipment come into the picture. LEFFER’s casing oscillators use slow, powerful, back-and-forth torque to rotate and push large-diameter casing into and out of the ground. These oscillators can be much more usefull in both loose and dense soil than vibrating or percussive force.
Water table control
Much of Hawaii’s construction happens near coastlines or harbors, where groundwater infiltration could collapse open boreholes and compromise shaft integrity.
Casing oscillators allow for simultaneous casing installation and drilling while allowing for the dewatering of shafts. The casing installation forms a watertight seal, preventing groundwater from entering and destabilizing the excavation.
Casing oscillators also create ideal conditions for concrete pouring and rebar placement, which is necessary for deep foundation piles in projects like bridge piers, wharves, or buildings in coastal developments.
Environmental protection
The low-impact, vibration-free installation helps minimize noise pollution in sensitive areas. This is particularly important for coastal or marine projects where disturbing nearby aquatic life is a concern.
Safety and precision
The simultaneous drilling and casing process improves the shaft’s stability, reducing the risk of accidents. Modern oscillators also have advanced control systems for greater drilling accuracy.

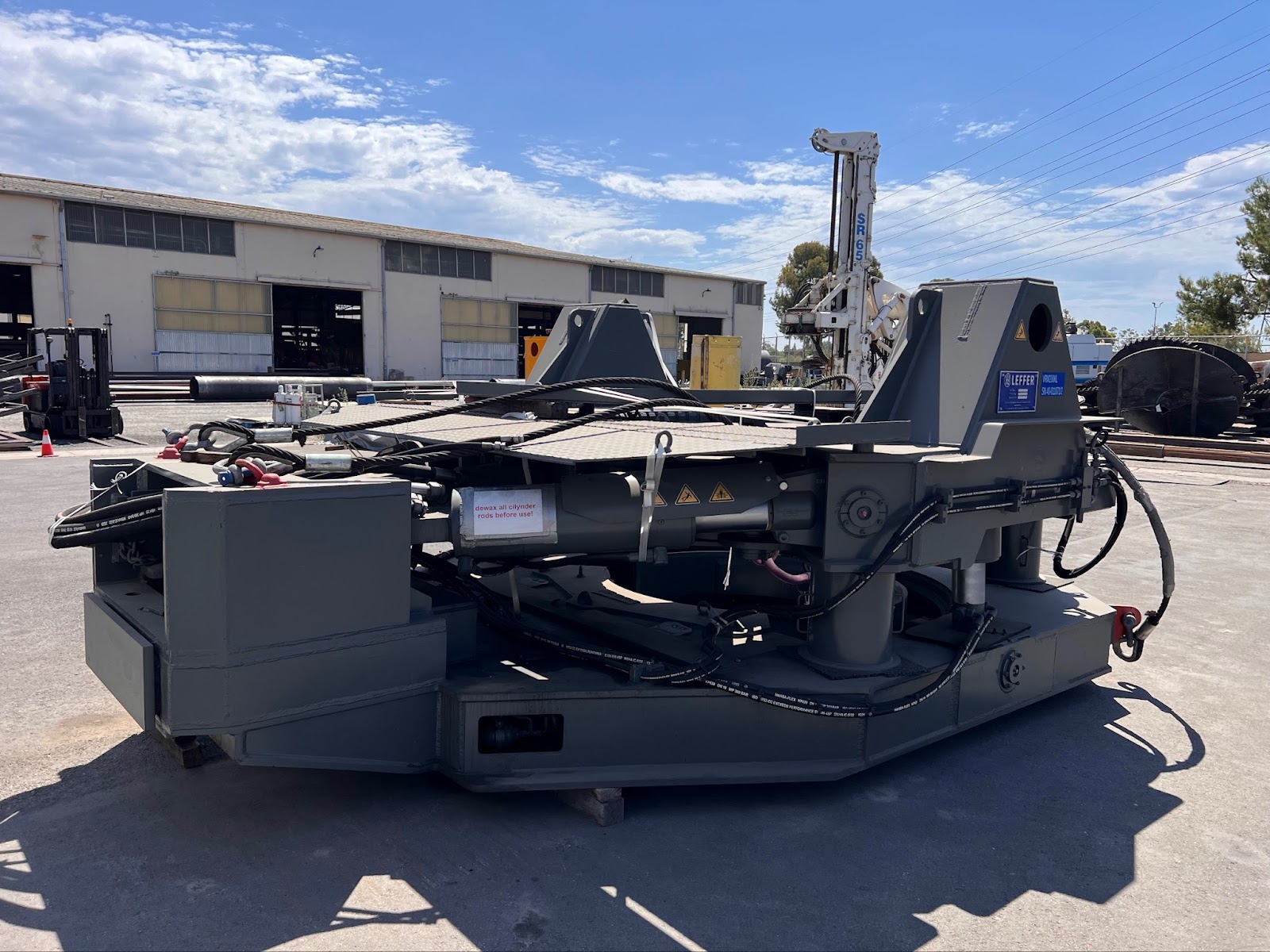

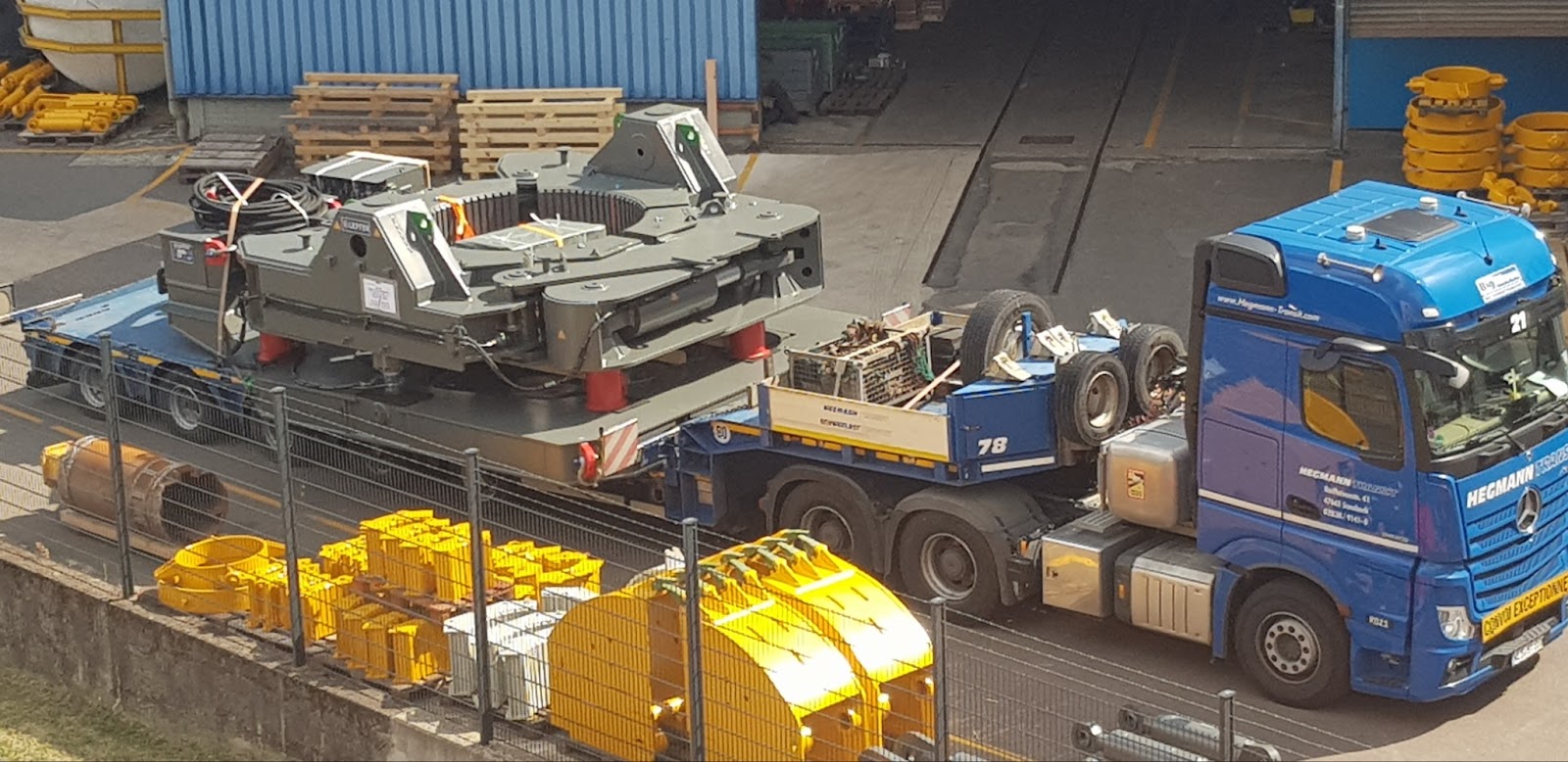

Innovation: The LEFFER 3050 VRM KL
LEFFER, a German engineering leader, has redefined the capabilities of foundation drilling equipment by partnering with Western Equipment Solutions to develop the world’s largest oscillator capable of working with a drilling rig — the LEFFER 3050 VRM KL.
Unlike traditional, crane-mounted oscillators, this groundbreaking unit mounts directly to a drill rig, streamlining the drilling process and improving operational flexibility on confined or complex job sites.
Key specifications
- Maximum casing diameter: 3,050 mm (10 feet)
- Maximum torque: 5,400 kNm
- Stroke of lifting cylinder: 450 mm
- Unit weight: 46,000 kg
- Mounting configuration: Designed for the Liebherr LB55 foundation drilling rig
This innovation is a major leap forward for projects requiring deep foundations in demanding environments where working with a drill rig is vital.
The HART Project: The Honolulu Rail Transit
The new LEFFER VRM3050KL oscillator was specifically designed for the HART Project’s Honolulu Rail Transit final phase.
The Honolulu Rail Transit Project is a fully automated, driverless rail system running along the southern coast of Oʻahu.
The route spans from East Kapolei Station to its temporary terminus at Civic Center Station, with most of it elevated, except for a 0.6-mile ground-level segment near Leeward Community College Station.
Powered by a third-rail electric system, the transit line operates a fleet of 20 trains — each composed of four cars — designed to provide efficient, high-capacity transportation across the island.
Becho, Inc.’s role in Hawaii’s infrastructure future
Becho, Inc. — a trusted geotechnical specialty contractor and part of the Tutor Perini family of companies — is at the forefront of delivering complex foundation solutions for large-scale infrastructure projects.
In Hawaii, where ground conditions shift dramatically from loose sand to dense volcanic rock, Becho’s expertise in woking with fully cased piling, ensures structural integrity and environmental compliance in the installation of foundations.
Looking ahead to major highway construction and other infrastructure developments across the islands, Becho is set to rely on next-generation tools like the LEFFER 3050 VRM KL oscillator. This advanced equipment will be essential for handling Hawaii’s geological challenges while minimizing disruption to surrounding environments and communities.
By pairing Becho’s geotechnical know-how with Tutor Perini’s project leadership and Western Equipment Solutions’ ability to supply cutting-edge LEFFER technology to U.S. contractors, the team is well-positioned to tackle even the most demanding foundation drilling scenarios.
Together, they are laying the groundwork — literally and figuratively — for a more connected and resilient Hawaii.
Get the right tools for the job with Western Equipment Solutions
When your project demands precision, power, and reliability, LEFFER foundation drilling equipment deliver unmatched performance. Whether you’re installing massive casings in unpredictable soil or tackling environmentally sensitive coastal sites, the right equipment makes all the difference.
Western Equipment Solutions has all your LEFFER drilling equipment in the U.S. As LEFFER’s partner, we offer expert guidance, hands-on support, and a full line of equipment. From procurement to service, we’re here to help your team succeed.
Contact Western Equipment Solutions today to learn how LEFFER tools can elevate your next foundation project.
