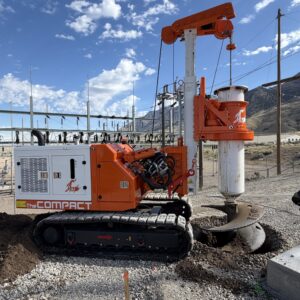

CF2.5 Compact Drilling Rig

The CF2.5 Compact is fondly referred to as the “Small Wonder” in the drilling community. It is a highly versatile and compact machine built to perform well in various settings. It comes with a radio remote controller, which enhances safety by allowing operators to manage the machine from a safe distance.

Additionally, the CF2.5 Compact includes a unique “counter-slide” device that lowers the mast group. This lowering enables it to achieve the lowest possible headroom working position. With a width of just 1550 mm, this machine easily moves through narrow spaces and tight areas, providing access to even the most confined job sites.

• Engine power: 65 HP
• Dual Motor Rotary Torque: 25,800 ft lbs
• Max diameter, along mast: 39.4 in
• Max diameter, under mast: 59 in
• Max depth in regular working height: 59 ft
• Minimum working headroom: 7.7 ft (when properly configured)
• Max depth in low headroom: 13 ft
• Extraction by cylinder: 12,300 lbs
• Crowd by cylinder: 17,984 lbs
• Overall weight (with kelly bar): 17,637 lbs
